Colorful has officially launched their first X870 motherboard for the AMD Ryzen 9000 series, the Colorful CVN X870 Ark Frozen. It is inspired by CVN or Aircraft Carrier Nuclear with its military-inspired aesthetics.

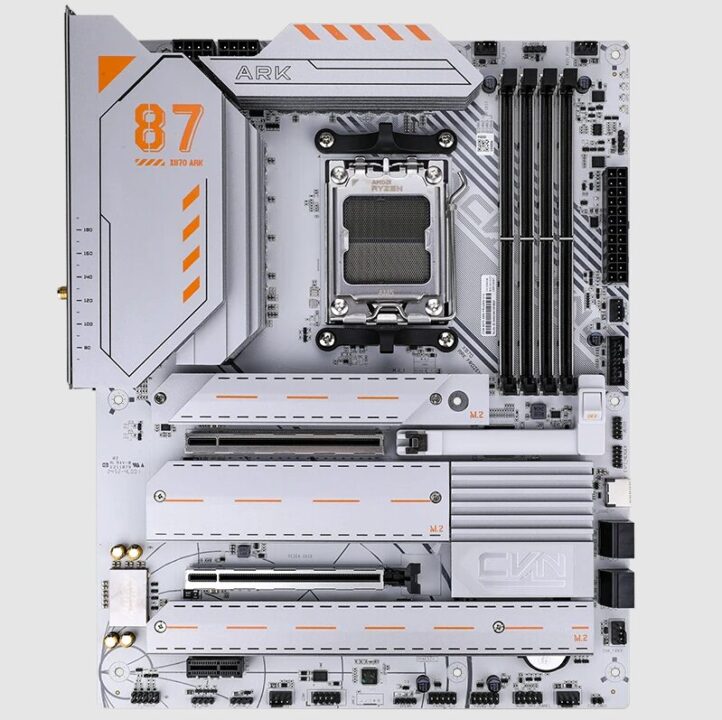

The Colorful CVN X870 Ark Frozen’s aircraft carrier-inspired look features large frost gray heatsinks and a titanium gray-colored PCB. – the first of Colorful’s AM5 motherboard to feature this colorway. Additionally, it has bright orange accents throughout while its M.2 heatsinks sport lines similar to the runway of an aircraft carrier.
As for performance, the motherboard features a 14+2+1 power phase design to enable CPUs such as the AMD Ryzen 9 9950X3D to run as fast as it can. It also supports 6400MHz C28 memory and a new X3D Game Mode in the update BIOS, which optimizes its configuration for better performance.
The CVN X870 Ark Frozen also comes with a rear latch design to provide easy removal of the graphics card and prevents damage to the PCB. Colorful has also extended the one-click lock mechanism for a better and more user-friendly installation experience for builders.
Official pricing and availability for the Colorful CVN X870 Ark Frozen are yet to be announced. More details will be available on its official webpage.
| CPU | AMD AM5 socket, supports AMD Ryzen 7000/ 8000/ 9000 series processors |
| Chipset | AMD X870 |
| Power supply phase | 14+2+1 Power Phase (Dr MOS 80A) |
| Memory | 4x DDR5 DIMM Socket Dual-Channel*, Support XMP/ EXPO *Single memory supports up to 48GB capacity, total memory capacity supports up to 192GB DDR5-8200(OC)8000(OC)/7800(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200(OC)/5000(OC)/4800MHz |
| Expansion Slot | 1x PCIe 5.0 x16, 1*PCIe x16(PCIe 4.0 x4), 1*PCIe 3.0 x1 |
| Storage | 4x SATA3.0 6Gb/s 3x M.2 SSD M.2_1:2242/2260/2280/22110(PCIe 5.0 x4，CPU) M.2_2:2242/2260/2280/22110(PCIe 5.0 x4，CPU) M.2_3:2242/2260/2280/22110(PCIe 4.0 x4，FCH) |
| Internal Connectors | 1x 24-pin ATX Power connector 2x 8-pin CPU Power connector 1x Front USB 3.2 Gen 2 Type-C 2x Front USB 3.2 Gen 1 Type-A (one pin) 4x Front USB 2.0 (one pin) |
| I/O Ports | 1x USB 4 Type-C; 1x USB 3.2 Gen 2 Type-A; 4x USB 3.2 Gen 1 Type-A; 2x USB 2.0; 1x HDMI port; 1x DP port; |
| LAN | RTL8126-CG 5G + Wi-Fi 7, Support Bluetooth 5.4 |
| Audio | 7.1-Channel High-Definition audio CODEC |
| Dimensions | 245mm*305mm, ATX |
